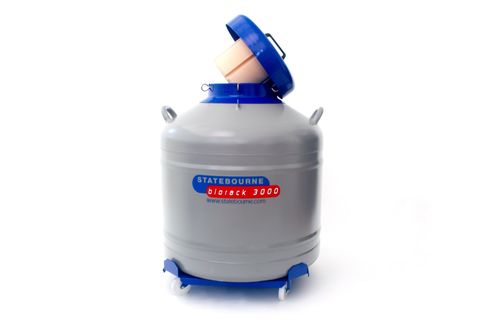

Biorack Series
This is the solution to reduce space, increase ultra-low cryogenic storage and maintain the manoeuvrability required.

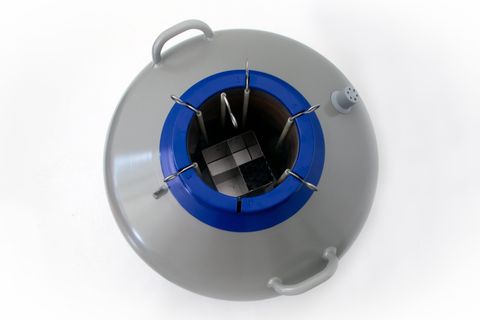

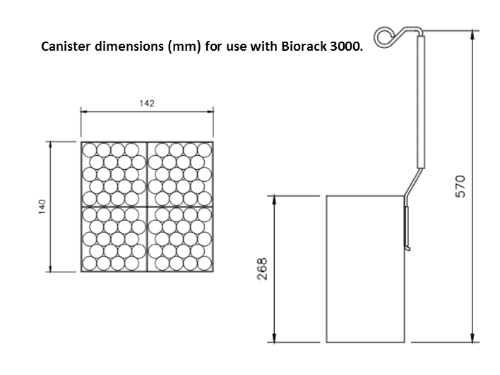

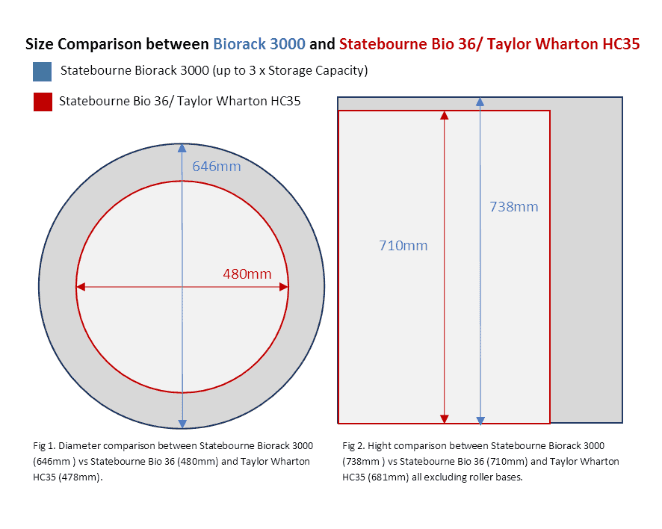

At less than 17cm (1/3) wider and only 2.8cm (1/16) taller than the two of the most popular storage tanks the Biorack 3000 can store up to 3 x the number of canes (140-160 vs 480 canes). This is achieved by having a larger opening to allow a specially designed square canister. The Biorack 3000 contains 6 square canisters. Each square canister can hold up to 80 canes with each canister separated into 4 sub-sections each able to hold up to 20 canes. This allows you to maintain cataloguing and organisation when storing all the extra canes but using far less floor space.
Biorack3000
The Biorack 3000 is suitable for canes up to 300mm in length. With the tubes inserted into the canister, this will leave approximately  32mm of the cane above the canister, allowing users to easily choose required samples.
The Biorack series of tanks provide highly efficient storage of bulk quantities. The specially designed racking systems housed within these ultra-low loss cryogenic tanks enable users to store large quantities of Biomedical material over long periods of time, safe in the knowledge that storage temperatures even in the vapour phase, will be below-190°C.
Advanced super insulation and ultra-high vacuum techniques allow storage times between refills of up to 6 months.

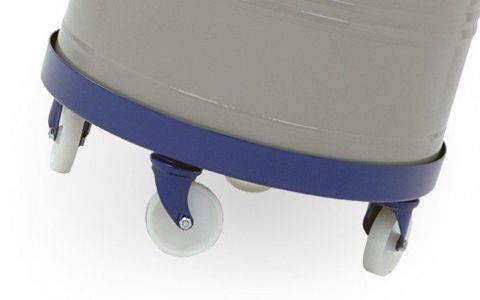

Roller bases are available for all models. Please state if you would like a roller base when ordering.
If all this space saving isn't enough then our Wireless Monitoring and Alarm customers can save even MORE.

To add the Biorack 3000 to your system it would only require 1 transmitter, whereas you would require 3 transmitters to monitor the same number of canes using the current tank dimensions.
