UMBILICAL - PRESSURE & RESISTANCE KITS

Britannia offer a comprehensive system to monitor the umbilical pressure and resistance.

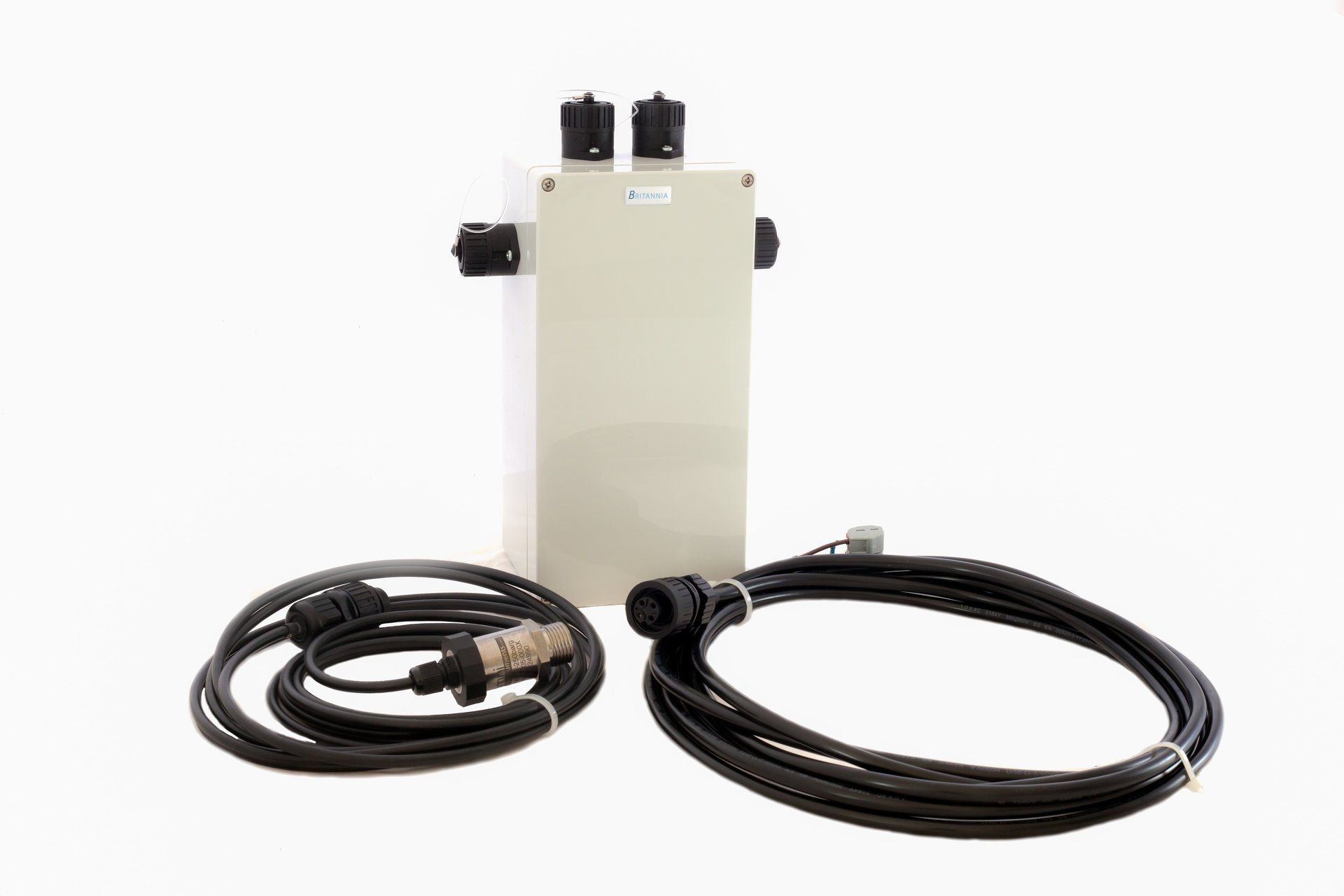

A system consists of a data logger with a high strength antenna that receives the wireless signals. Transmitters are configured onto the data logger and fitted in IP66 enclosures and IP66 glands. All enclosures and inputs are labelled

1 or more transmitters are configured for measure the pressure transducers. Pressure sensors are available up to 0-1600bar. The pressure sensors are supplied with 5m of cable and IP67 cable mounts, they are also fitted with cable markers for identification.

1 or more transmitters are setup to measure the resistance cables. Resistance cable are supplied with 5m of cable and IP67 cable mounts, they are also fitted with cable markers for identification.
1 Ambient temperature and/or humidity transmitter is supplied.

1 radio booster is supplied with all transmitters for use configured. This helps if the transmitters are in a difficult or distant location from the receiver.

Software allows the data to be downloaded and also the data viewed in real time.

The system is stored in a large peli case with instructions and calibration equipment.

Britannia also offer calibration, repairs and upgrades to these systems.

Transmitters for alternative measurements are available.
Data Sheet

Resistance Measurements

Measures Umbilical resistance range up to 0 - 10,000 ohms (+/- 1 ohms resolution)

250 Channels

Ability to monitor up to 250 channels, inputs or sensors

Minimal Installation

Without the need to run cable installation time and disruption is kept at a minimal

Auto Dialler

The unit can ring and deliver a prerecorded message to up to 10 numbers that requires acknowledgement.

0-1600 bar Sensors

Umbilical pressure ranges up to 1600 bar (+/- 0.25%)

Transmitted data is Encrypted

Data is encrypted

Independent

The system does not rely on a PC or network connection. Fully standalone.

Communicate over GPRS or Cable

Communicate with the system over the GPRS network or cable from multiple PC's

IP67 Enclosures and Glands

Sensors connections are via IP67 water proof connections for ease of deployment.

2 KM
Transmissions

System can transmit up to 2 KM over open ground. Boosters are available for difficult or distant units.

Battery Back Up

System has extended battery back up in case of mains failure.

Range of Software Packages

Selection of software packages depending on your needs

Repairs and Calibration Available

Full system repairs and calibration available

Transmitters

Large  range of transmitters that be configured to monitor anything!

Text Unit

Optional text alarm unit
Can text up to 10 phone numbers that can be assigned to specific channels/ items of equipment.

Storage Case

All stored in a robust peli case.
Key features
Measures Umbilical resistance range up to 0 - 10,000 ohms (+/- 1 ohms resolution)
Umbilical pressure ranges up to 1600 bar (+/- 0.25%)
1-250 inputs
Sensors connections are via IP67 water proof connections for ease of deployment.
Set up via simple 3 button built in display or PC.
Option to add increased battery capabilities for extended use.
Large and secure memory starting at 247,000 readings - 2,000,000.
Readings Scaled ohms, PSI, Bar etc
PC connection allows real time readings of resistance, pressure, ambient pressure or other required sensors.
Software allows data to be organised into graphs and charts, with time and date stamps
Main receiver can have up to 250 Channels/ Sensors/ inputs programmed
Transmitted data is encrypted.
Transmitters have a range of up to 2 Km when fitted with upgraded antennas
Radio Boosters are available for long distance or difficult building configurations.
A single transmitter can monitor up to 8 inputs or sensors*.
The monitoring system is completely wireless, allows equipment to be moved freely.
Logging and alarms non-dependent on a PC, providing a stand alone-system.
Battery backup to allow continuous data monitoring even if there is a mains failure.
Telephone, email and remote support technical support available.
Alternative software packages avaliable
Service contracts options

* Only available to measure specific inputs
