Copy of Wireless Monitoring Systems
Wireless Monitoring Systems
Standard
Our most common wireless solution is the Wireless monitoring system.

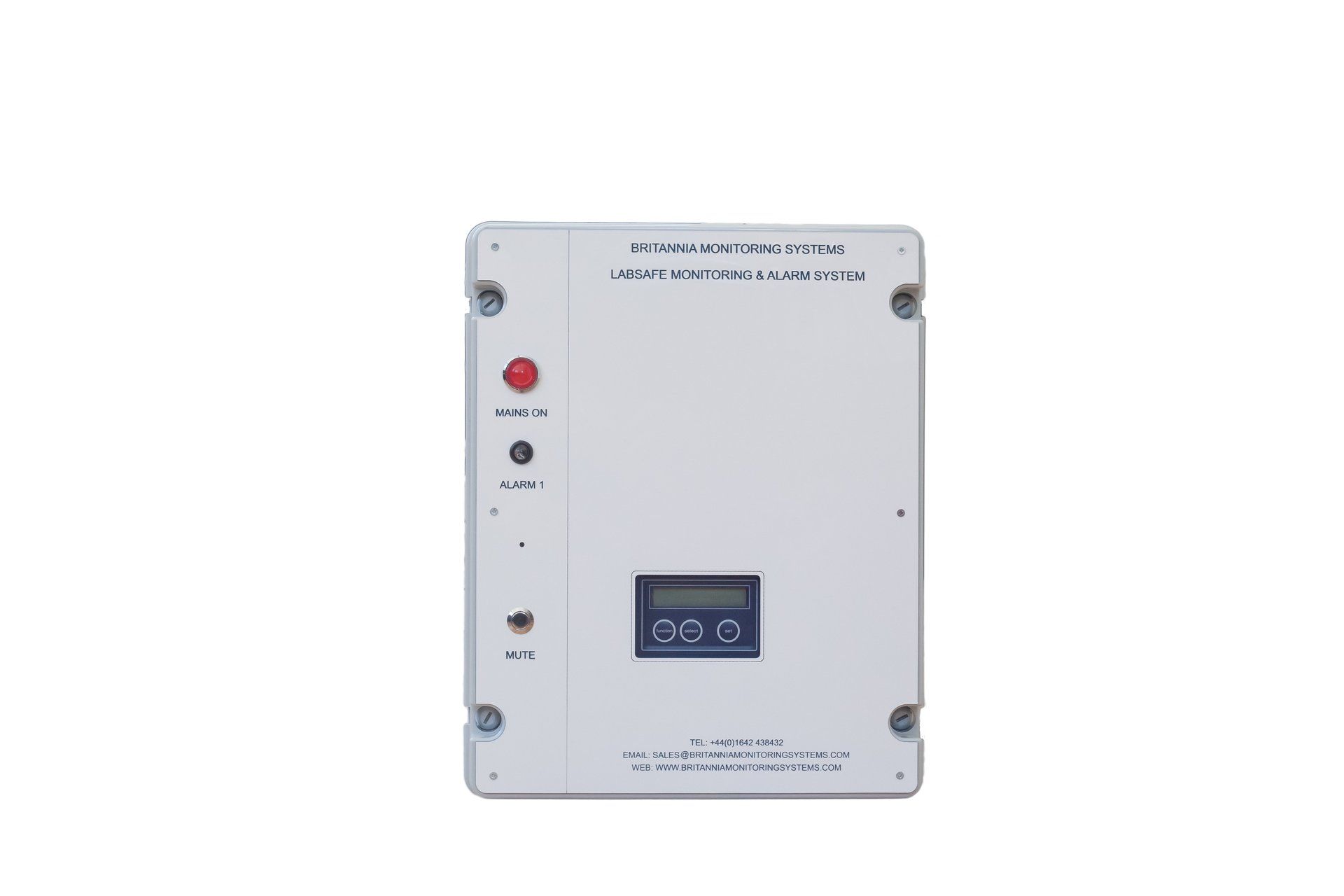

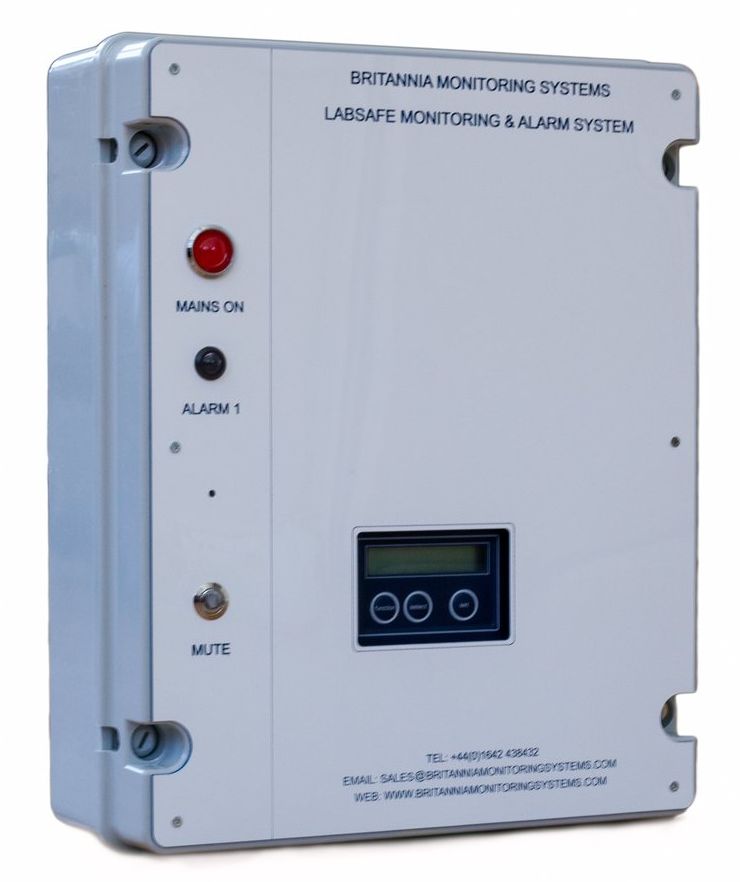

Consisting of a main panel that contains a data logger (reciever), charging circuit, back up battery, GSM*(Test message alerts ), Auto Dialler* (Pre-recorded voice mail alerts) & MOXA* (LAN Connectivity).
An audio and visual alarm is also fitted onto the main panel as well as a power supply indicator and mute button.
Specifications
up to 250 channels/ inputs
High & low alarm thresholds with a delay option
Adjustable Logging interval
Standalone system - works without a PC or internet connection.
We provide full installation, servicing, calibration and maintenance packages. Please visit our service contract page for more information.
* Indicates optional hardware - please see Extra's section for more information.
Secure
The Secure wireless monitoring system is our most protected system.
Consisting of a main panel that contains a data logger (reciever), charging circuit, back up battery, GSM*(Test message alerts ), Auto Dialler* (Pre-recorded voice mail alerts) & MOXA* (LAN Connectivity).
An audio and visual alarm is also fitted onto the main panel as well as a power supply indicator and mute button.
Specifications
up to 250 channels/ inputs
High & low alarm thresholds with a delay option
Adjustable Logging interval
Standalone system - works without a PC or internet connection.
Darca Secure Software package
We provide full installation, servicing, calibration and maintenance packages. Please visit our service contract page for more information.
* Indicates optional hardware - please see Extra's section for more information.
Software
Darca Plus - Basic
o User Friendly configure all settings such as alarm
thresholds, logging, Text message telephone number
(Requires additional hardware)
o Allows data download and analysis
o Exportable to popular spreadsheets
o Real time metering
o Real time graphing
o Graphing features such as zooming, custom axis,
statistics including threshold
o Insert comments at points of interest on the graph
o Transmitter low battery warning
Darca Heritage – Enhanced
o Day to Day operation and settings separated for
even simpler user interaction
o Automated Data collection and analysis
o Exportable to popular spreadsheets
o Real time metering
o Data stored in a central repository, so all historic
data is easily accessible
o Channels can be configured to individual,
zoning/group graph structure
o Graphing features such as zooming, custom axis,
statistics including threshold
o Insert comments at points of interest on the graph
o Mutli-user system with varying levels of user access
Darca Secure - (For use with Secure System)
o Data encrypted with a secure key
o Data not modified and is completely tamper proof
o User management & audit trail using guidelines for electronic signatures set out in 21 CFR Part 11.
o User Friendly configure all settings such as alarm
thresholds, logging, Text message telephone number
(Requires additional hardware)
o Allows data download and analysis
o Exportable to popular spreadsheets
o Real time metering
o Real time graphing
o Graphing features such as zooming, custom axis,
statistics including threshold
o Insert comments at points of interest on the graph
o Transmitter low battery warning
Extra's
GSM
Auto dialler
MOXA
Repeater
Dual Antenna Repeater
Why use a monitoring system?
Britannia's wireless monitoring and alarm solutions are essential for the protection of vital products.
A standard or secure wireless monitoring system is available. Both systems contain lots of similar features however the secure system has user management, audit trails and is 21 CFR part 11 compliant.
The wireless systems consist of a main panel that receives the wireless signals form the transmitters.
A variety of transmitter models are available that can monitor different input and ranges. Certain transmitter models can also ave multiple inputs. Sensor can be provided to monitor any requirement.
A software package is provided that allows the user to easily interact with the main panel to easily download, view and print the data collected. The simple user interface is also used to set and change settings such as alarm thresholds and text alert numbers (optional).
When an alarm is triggered the built in sounder and alarm LED’s are activated. When the alarm issue is resolved the system will reset and continue to log and monitor.
The system can be configured and adapted to suit an endless range of needs. With a large range of transmitters that can be setup to measure various parameters or outputs from other items of equipment such as our gas monitors the system can monitor and alarm them all.
Because we manufacture the Labsafe system we have the ability to create a system to your specific needs.
Common Industries
