OXYSAFE Standalone

OXYSAFE Standalone

Overview

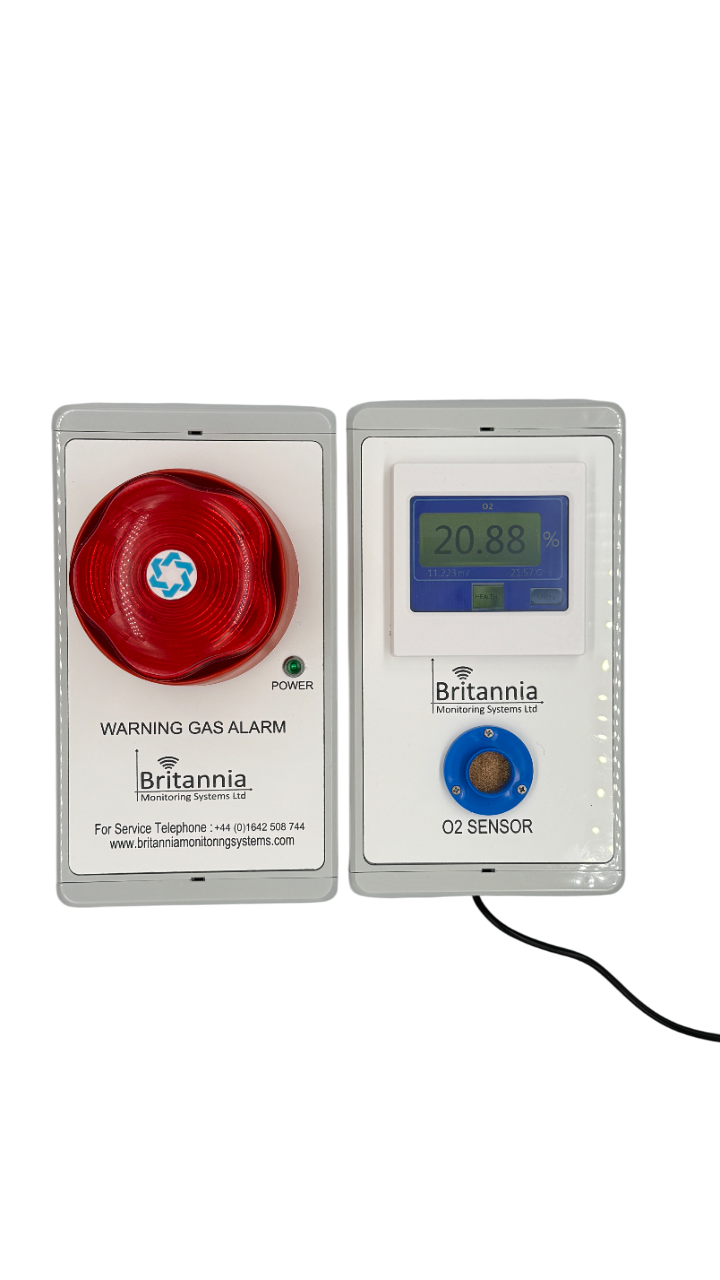

Our most popular product the OXYSAFE Standalone is a single sensor oxygen unit with power indicator, alarm status indicator, internal buzzer, single relay, user recalibration function and complete with temperature compensation.

Options include the following:
  • LCD Display - to show display oxygen levels and alarm conditions.
  • Analogue Output - allows OXYSAFE unit to be monitored by third party equipment such as the Britannia Wireless Monitoring System.
  • Additional Single Relay - A  second relay to be triggered at an alternative set point
  • Battery Backup - provide approx. 12 hours of power in the event of a mains failure
  • Wireless Radio Transceiver - Allows the unit to wirelessly communicate with any remote alarms, removing the need of cable installation.
Visual alarm LED illuminated green to show the unit is powered on and switches to red when in alarm. Also fitted with an Internal buzzer to indicate an alarm.

Temperature compensation is built into the unit to auto adjust to the changing environmental conditions, that can provide inaccurate readings and false alarms.

Single relay that is typically configured to trigger at <19.5% O2, this can be used to activate an additional audio and visual remote alarm that can be mounted above entrance doors, warning users not to enter an unsafe environment.

The O2 cell has an approx. life span of 12-15 months. We provide full installation, servicing, calibration and maintenance packages. Please visit our service contract page for more information.
Swipe left - Right for all options

Key Features

Minimal Installation

simple to install and low maintenance

Fan Activation

Triggered by the OXYSAFE and/ or PIR, Door Locking Systems.

Data Logging

Connect to Britannia's wireless monitoring system.

Monitor Range Of Gases

Can monitor a range of gases sush as CO2, CO, NH3, LEL in single and multi zone systems

Temperature Compensation

Built in temperature compensation

Analogue Output

Used to link to third party systems such as Building management system or Britannia wireless system

Wireless Communication

Wireless connectivity available eliminating the need to run cables.

Text Unit

 Optional text alarm unit
Can text up to 10 phone numbers that can be assigned to specific channels/ items of equipment.

Common Industries
